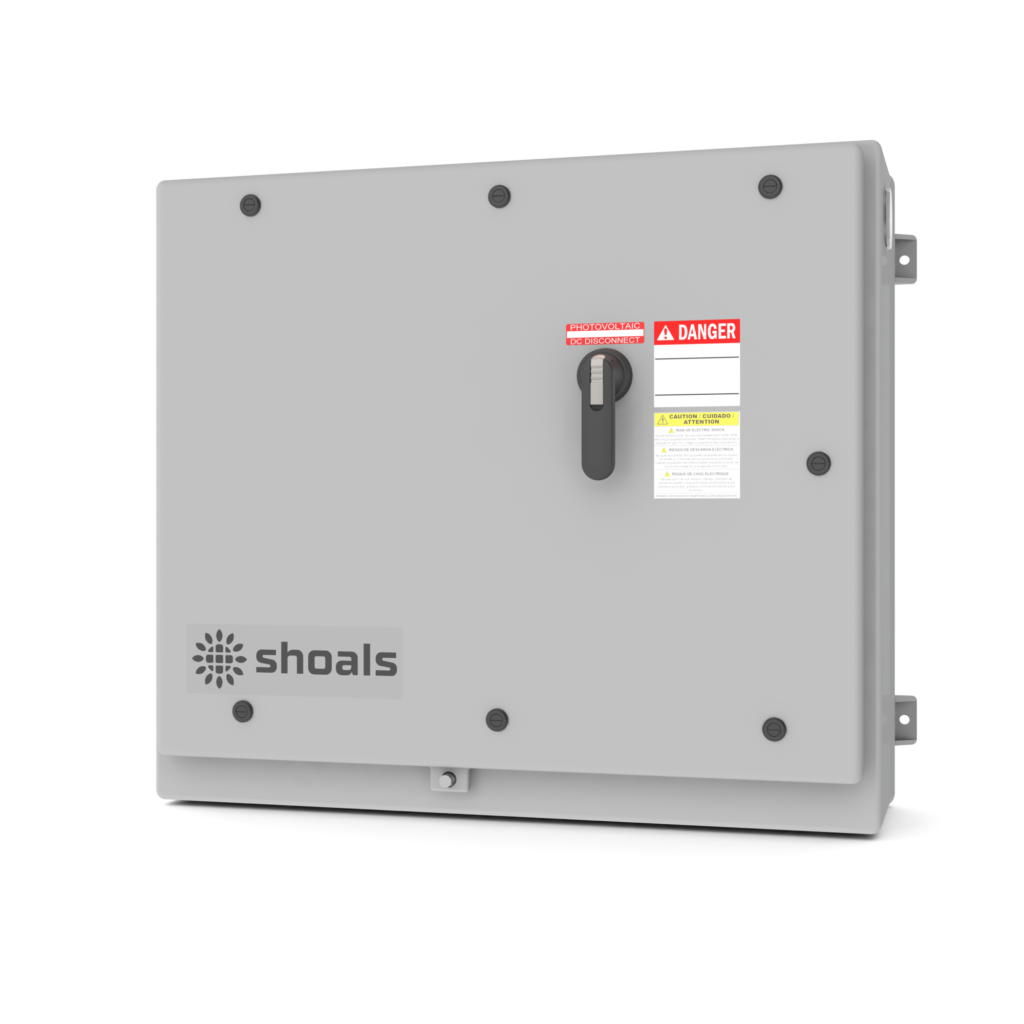

Super Combiner
The Super Combiner works seamlessly with our mini BLA system. This solution combines inputs from multiple solar arrays into a larger DC feeder, enabling a simpler, more flexible site design. It helps manage high-voltage DC power, improves system organization, and reduces wiring complexity.
Built-in protection features such as fuses and surge protection help ensure safe operation as power moves through the system. Ultimately, that electricity is delivered to the grid, helping power communities with clean energy.
EN
compliant
Ensuring industry standards
100%
load-break rated
Lab-proven under full load during static heating sequence test with fuses installed
5 YR
Standard warranty
Guaranteeing quality and longevity with our support
- Blade-style fuse holders
- Up to 500 A, 1500 V disconnect, 100% load-break rated
- Tin-plated bus bars rated for 90 °C, Cu/Al
- IP67 Breather vent reduces internal condensation
- Safety shield covers all live components
- Designed for ease of cable installation
- Surge protection device, Type II (Type I+II available)
- IP66 pad-lockable enclosure
- Standard 5-year warranty
- Compliant with EN 61439-2 and AS/NZS 61439-2 standards
- Pre-installed IP68 glands
- Pre-installed HDG uni-strut
- Pre-installed HDG mounting kits
- Pre-installed drain vent
